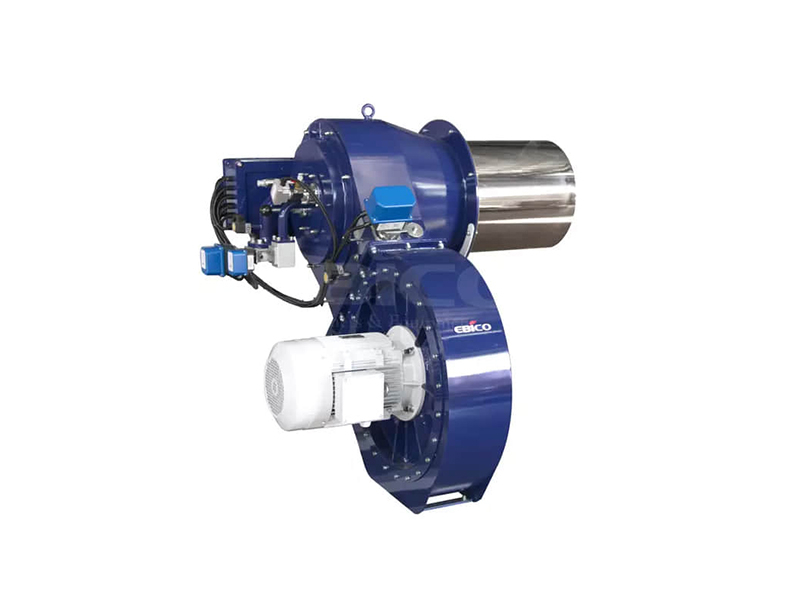

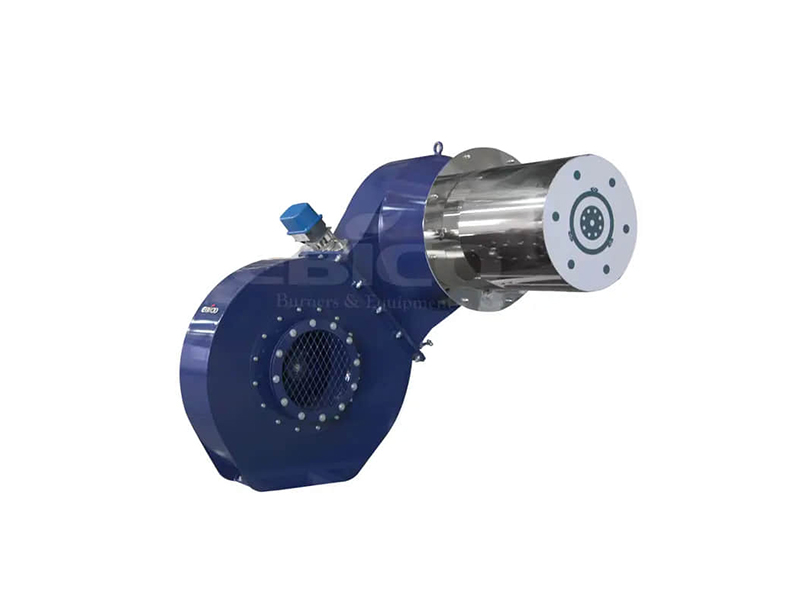

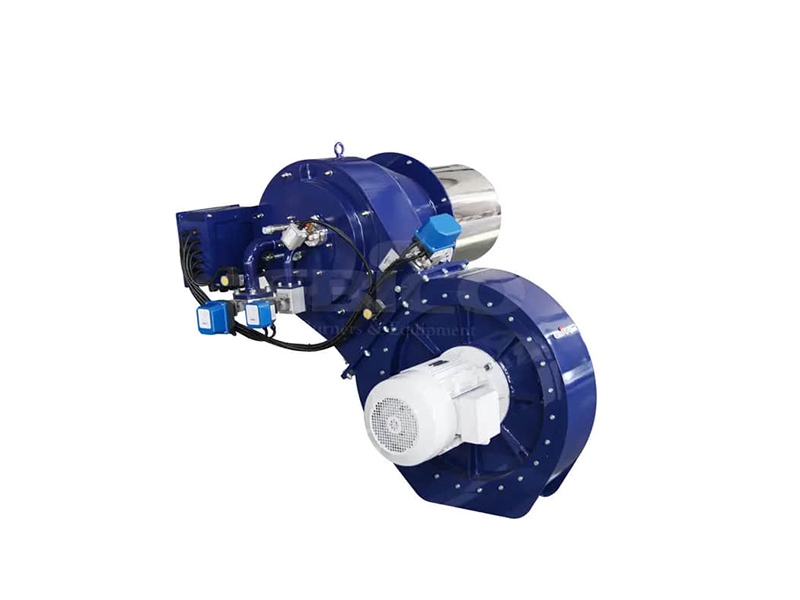

EC-GR VIC New Technology Low Nitrogen Burner for Boiler (3-30 TH)

Product Introduction

The EC-GR VIC New Technology Low Nitrogen Burner for Boiler (3–30 TH) is a dedicated combustion solution for medium industrial boilers requiring stable steam output and strict emission control. Covering 3T to 30T boiler capacities with output power from 3000 to 24,500 kW, it is built for 24-hour continuous industrial production.

Using VIC low-nitrogen combustion technology and electronic proportional regulation, the burner maintains stable flame performance under fluctuating thermal loads while keeping NOx emissions below 30 mg/m³ without FGR. Its modular skid-mounted structure enables fast installation and simplifies maintenance, making it highly suitable for both new boiler projects and low-NOx retrofit applications.

Features

• Dedicated for 3–30 TH Industrial Boilers

Precisely matched to EC3GR–EC10GR models, covering 3000–24,500 kW output for medium-capacity steam and thermal oil boilers.

• Stable Ultra-Low NOx Without FGR

Maintains NOx < 30 mg/m³ without FGR, ensuring regulatory compliance without increasing system complexity.

• Electronic Proportional Combustion Control

Real-time air–fuel ratio adjustment ensures stable flame, fast load response, and consistent steam pressure.

• High Fuel Efficiency for Continuous Operation

Designed for long-term 24-hour production, delivering near-constant thermal efficiency without output attenuation.

• Multi-Fuel Industrial Adaptability

Supports NG, LNG, LPG, CNG, heavy oil, light oil, and coal powder, ideal for plants with unstable or diverse fuel supplies.

• Modular & Skid-Mounted Structure

Reduces installation workload, site modification, and downtime during replacements and retrofits.

• Anti-Condensation & Anti-Carbon Deposition Design

Prevents low-temperature corrosion, nozzle clogging, and combustion chamber fouling, extending service life.

Applications

The EC-GR Low Nitrogen Burner (3–30 TH) is designed for medium-scale industrial thermal systems where environmental compliance, fuel efficiency, and continuous operation are critical:

• 3–10 TH Steam Boilers – food processing plants, packaging factories, laundries

• 6–15 TH Industrial Boilers – textile dyeing, printing, water washing industries

• 10–20 TH Process Boilers – pharmaceutical production, fermentation systems

• 15–30 TH Heavy Industrial Boilers – chemical plants, rubber and resin production

• Thermal Oil Heating Systems (8–30 TH) – asphalt mixing plants, chemical reactors

• Low-NOx Boiler Retrofit Projects – emission upgrades for existing medium boilers

• Industrial Parks & Centralized Heating Stations – medium-scale heat source systems

This range represents the core industrial boiler market with the highest annual operating hours and strictest emission supervision.
