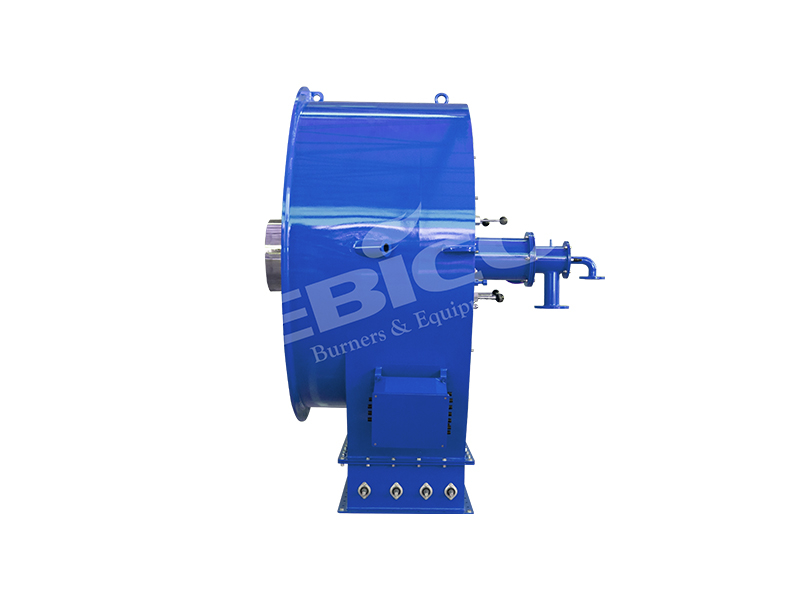

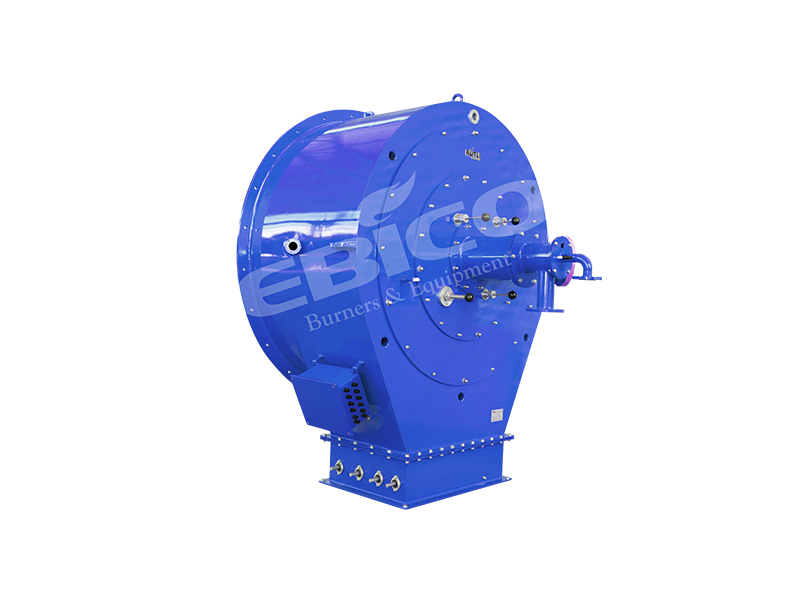

EC-C Series Pulvarized Coal Powder Burner For Asphalt Mixing Plant

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

Founded in 1998, EBICO (China) environment Co., Ltd. is headquartered in Milan, Italy. With more than 20 years of industry experience, EBICO has been committed to building the most influential and professional burner manufacturing company in the world.

EBICO is very professional in providing supporting burners for steam boiler, hot water boiler, heat conduction oil future, garbage incinerator, hot air boiler, asphalt mixing plant, road structure and other equipment. EBICO has customers all over the world and countless successful cases. At the same time, EBICO has also actively participated in many international bidding projects, It has won high praise from customers.

Design and inspection standards for EBICO burners

Design Criteria: Follow

Test standard: follow

EU EN267 (fuel)	EU EN676 (gas)	EU CE/ISO certification
China CSEI certification	Russia EAC certification	National standard GB/T36699-2018

Product Advantage

Combustion adjusting ratio:

1:3 (Higher adjusting ratio requirement can be customized)

1:4

Burnout rate: up to 99.03%

Coal Powder Quality

Coal Powder Particlesize:

200 mesh sieving rate is greater than 50%

Coal quality index：

Moisture≤10%, Volatile Matter≥25%, Ash≤10%, Sulphur≤0.5%

LHV Lower Heat Value 4600~6300kcal/kg

Note:

The sulfur content of coal powder in the fuel should be controlled in areas with strict environmental protection standards.

Emission

Dust: <10mg/Nm3 (including cloth bag for removing dust)

NOx: <150-200mg/Nm3 (without denitration device)

NOx: <100mg/Nm3 (with SNCR or SCR)

Burner color can be customized on request.

Product Characteristics

EBICO EC-C electrical ratio adjusting pulvarized coal burner is an intelligent one with high-precision developed by Ebico for asphalt mixing plant, which can be adapted to 1000-5000 type asphalt mixing plant with Integrated body design, modularized skid-mounted and efficient and convenient maintenance.

Main Features:


The primary air is direct-flow, which enhances the penetration of pulverized coal.	Enriched pulverized-coal ring that is equipped within the primary air duct can separate the primary air and powder mixture, improve the low-load stable combustion capacity and reduce Nox emissions.	Setted with a transitional direct-flow air outside the primary air, the burner can enhance the air classification and properly prevent the coal powder from fastly outward diffusion.	Adjustable swirler in secondary air duct can flexibly adjust the flame size to better match with the boiler.

Equipped with internal combustion chamber space to accelerate precipitating volatile components, improving low-load combustion stability, and reducing ignition fuel consumption.	Tertiary air is also a direct-flow which can effectively avoid coking phenomenon.	Using flue gas circulation technology (FGR) to further reduce Nox emissions.	The burner operates normally by first igniting with natural gas/LPG. Once the combustion chamber temperature reaches the set point, pulverized coal begins to be injected and co-fired for a period of time. The gas supply is then cut off, and the feed of pulverized coal is reasonably regulated according to boiler load requirements.
