Product Introduction

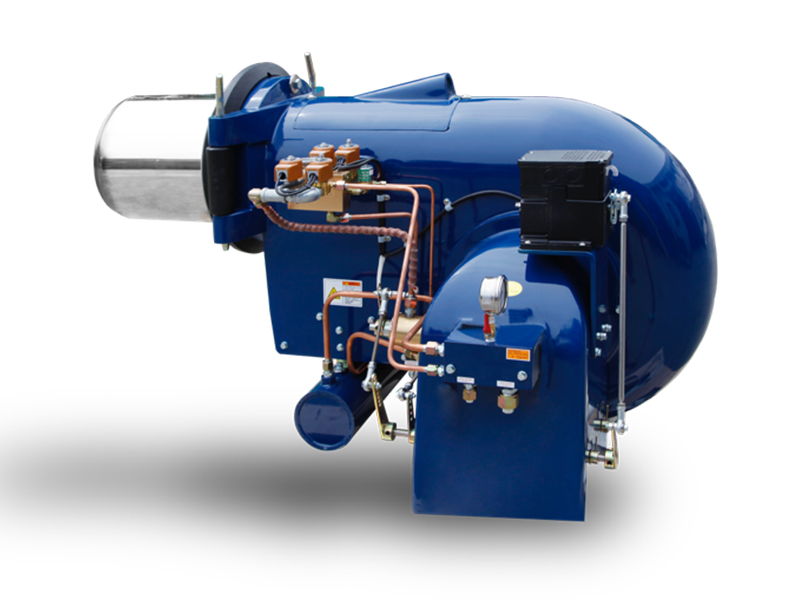

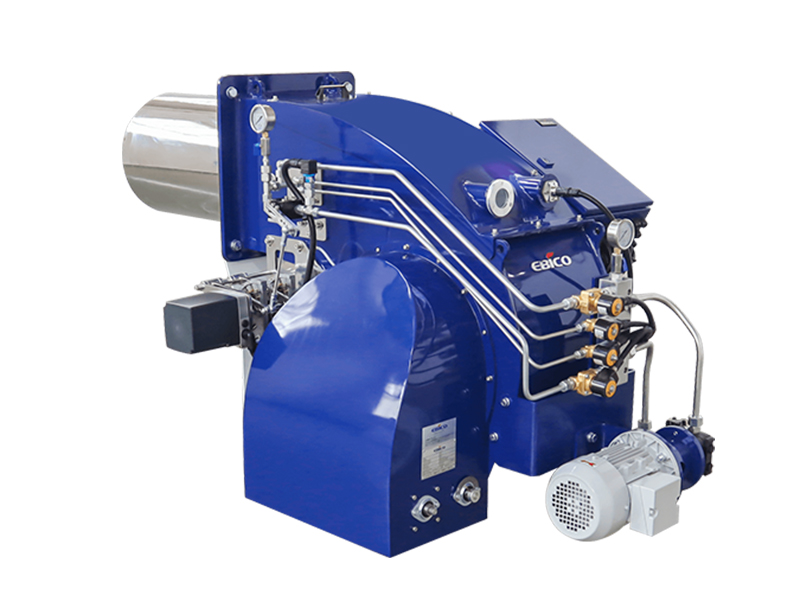

The EBICO Monoblock Series Marine Burner is a compact, fully integrated combustion unit developed specifically for marine boilers, hot water systems, and shipboard thermal equipment. Built with a monoblock structure that combines the fan, oil pump, ignition, and control system into a single housing, it minimizes installation complexity while maximizing operational reliability at sea.
Designed for light oil operation with mechanical proportional control, this series delivers stable flame performance across a wide thermal range from 260 kW to 9,500 kW. Independent drive systems for air supply and oil pumping ensure precise combustion adjustment even under fluctuating sea conditions, providing dependable heat output for continuous marine duty.
With a noise-reduced air inlet design, streamlined airflow path, and energy-efficient drive system, the Monoblock Series is optimized for quiet operation, low fuel waste, and extended service life in confined engine rooms.
Product Advantage
EBICO Mono Block series Marine Burner features
|
|
|
The design is simple and durable, with a panel door and curved body for easy maintenance.
|
The streamlined structure reduces wind resistance and noise.
|
The air inlet has a large opening and a noise reduction design, with excellent linear adjustment of air volume.
|
|
|
|
Both the oil pump and air supply are independently driven, saving energy and having a long lifespan while being energy-efficient.
|
It utilizes infinite proportional adjustment, saving fuel and electricity, and boasting good emission data.
|
It has complete certifications such as ship certificates, inspection certificates, CE certification, Russian EAC certification, and patents, makingit widely applicable.
|
Technical Parameters
| Model | Fuel source | Regulation | Output capacity (KW) | Oil consumption (kg/h) | Control system | Fan power (KW) | Oil pump capacity (KW) |
| ES150 | Light Oil | Mechanical Proportional Control | 260-1560 | 33-132 | LFL | 2.2 | 0.75 |
| ES200 | 425-2552 | 53-215 | LFL | 3 | 1.1 | ||
| ES250 | 511-3070 | 41-245 | LFL | 5.5 | 1.5 | ||
| ES300 | 700-4200 | 89-355 | LFL | 7.5 | 1.5 | ||
| ES500 | 916-5500 | 116-465 | LFL | 11 | 2.2 | ||
| ES600 | 1325-7950 | 168-670 | LFL | 15 | 4 | ||
| ES800 | 1583-9500 | 200-800 | LFL | 18.5 | 4 |
Note: Technical parameters are test data of the laboratory and may be not the same at different working conditions.
Application
The EBICO Monoblock Series Marine Burner is engineered for stable thermal generation in offshore and onboard environments, where space efficiency, vibration resistance, and operational safety are essential.
It is widely applied in:
Marine Steam Boilers – Supporting heating, fuel treatment, and onboard processing systems
Ship Hot Water Boilers – For crew accommodations, kitchens, and sanitation systems
Auxiliary Boilers on Cargo Vessels – Bulk carriers, container ships, and tankers
Port Service Vessels & Tugboats – Compact boilers with fast heat response
Offshore Platforms – Energy supply for auxiliary thermal equipment
Marine Heating Units – Heat tracing, tank warming, and pipeline temperature maintenance
Its monoblock layout, mechanical proportional control, and fuel-efficient architecture make it especially suitable for vessels that demand long operating hours with minimal maintenance access.
FAQ
Q1: Is the burner suitable for continuous operation during long ocean voyages?
Yes. The monoblock system is designed for long-duration, uninterrupted marine operation, with stable ignition, consistent oil pressure, and vibration-resistant structure.
Q2: Can the burner operate in high-humidity and salt-spray environments?
Yes. The housing and internal components are treated for corrosion resistance, making them suitable for coastal and offshore conditions.
Q3: Does this burner require complex control integration on ships?
No. It uses a self-contained mechanical proportional control system, which simplifies electrical integration and reduces dependency on external automation.
Q4: Is this series suitable for retrofitting older marine boilers?
Yes. The compact monoblock design allows for direct replacement of legacy burners with minimal structural modification.
Q5: Can fan and oil pump capacities be customized for special ship layouts?
Yes. Fan power and pump drive parameters can be adjusted during configuration to match space limitations and boiler load requirements.
