Product Description

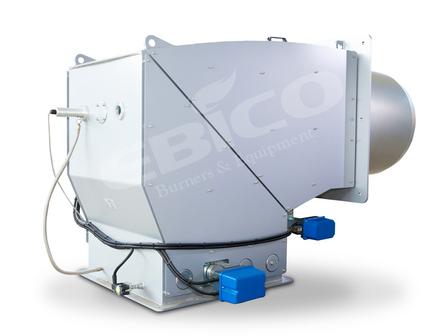

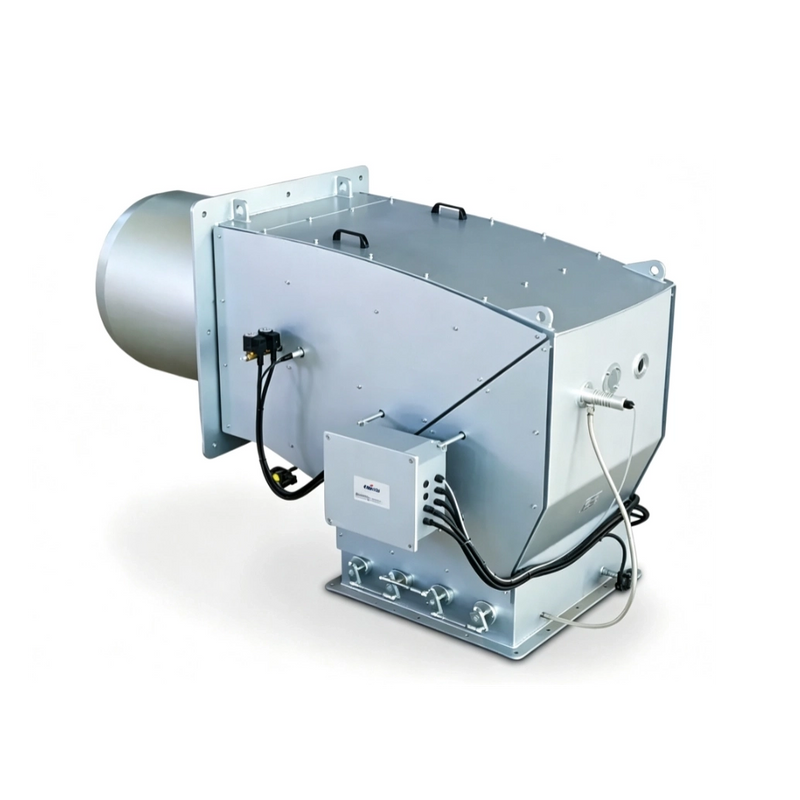

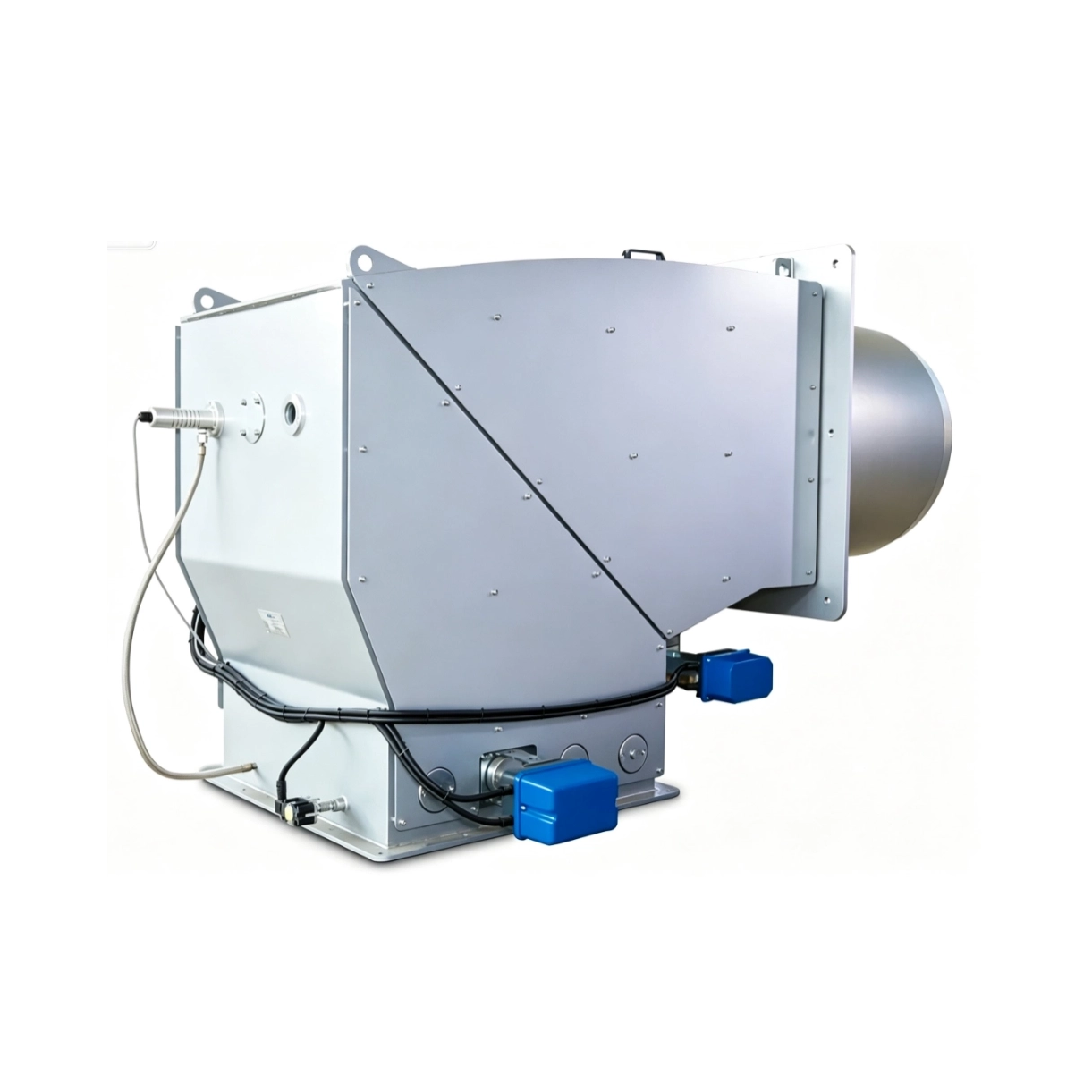

EBICO EP-Q/NQ is a compact split gun-type electronic proportional industrial oil burner, specially developed for thermal oil boilers and hot air furnaces. It supports multi-fuel combustion including light oil, heavy oil, emulsified oil and bio-oil, with power coverage of 85–33500 kW, perfectly matching 300,000–30,000,000 kcal thermal oil furnaces. Built on EBICO’s 60+ years thermal combustion technology, it integrates safety, energy-saving, eco-friendly and intelligent control into one unit, widely adopted in global industrial heating production lines.
Model | Output Power (kW) | Fuel Consumption (kg/h) | Matched Thermal Oil Boiler (Mcal) |
|---|---|---|---|
EP1Q/NQ | 720 | / | 50 |
EP2Q/NQ | 1420 | 120 | 75/100 |
EP3Q/NQ | 2380 | 200 | 125/150 |
EP4Q/NQ | 3315 | 280 | 200/250 |
EP5Q/NQ | 5440 | 458 | 350/400 |
EP6Q/NQ | 8100 | 680 | 500/600 |
EP7Q/NQ | 9500 | / | 600/700 |
EP8Q/NQ | 13300 | 1120 | 800/900 |
EP9Q/NQ | 17000 | 1430 | 1000–1200 |
EP10Q/NQ | 20825 | 1755 | 1500 |
Structure: Split gun type integrated burner
Applicable Fuels: Light oil, heavy oil, emulsified oil, bio-oil, mixed oil
Control Mode: Electronic proportional digital regulation
Matching Equipment: Thermal oil boiler, hot air furnace, industrial drying kiln
Customization: Support non-standard pipeline, power and installation size customization
Supports full range of liquid fuels including light diesel, heavy fuel oil, waste emulsified oil and biofuel. Factories can switch fuels freely according to local fuel cost without replacing the whole combustion system, greatly reducing production operating costs.
Adopts full digital proportional control system, automatically adjust oil supply and air intake ratio in real time according to boiler load changes. Achieve complete atomization & full combustion, reduce black smoke and carbon deposit, fuel consumption cut by 8%-15% compared with traditional mechanical burners.
Equipped with flame loss detection, oil pressure interlock, air pressure protection, over-temperature shutdown and anti-leakage oil circuit design. Automatic cut-off fuel supply once abnormal signal detected, eliminate fire hazards during long-term continuous industrial operation.
Modular split gun layout, reserved large maintenance access window. No need to disassemble the whole unit from boiler when replacing nozzle, filter and wearing parts; standard flange interface fits most mainstream thermal oil furnaces on the market.
Optimized swirling combustion head design, sufficient air-fuel mixing to reduce NOx and soot emission. Meet EU, Southeast Asia, Middle East industrial exhaust emission limits, no extra denitrification equipment required for most production scenarios.
Fully automatic one-key startup, pre-purge furnace before ignition, real-time monitoring of oil pressure, flame status and exhaust data. Optional IoT remote monitoring module, realize remote parameter adjustment, fault alarm and data export, reduce on-site manual maintenance work.
High-Efficiency Atomization Combustion Head
High temperature resistant alloy flame tube, swirling air distribution structure, evenly mix oil mist and combustion air, form stable long flame, adapt to various furnace chamber sizes.
Independent Oil Supply Pipeline Module
Dual oil circuit design for light/heavy oil, equipped with oil filter, pressure regulating valve and heating component for heavy oil, guarantee stable fuel supply under low temperature environment.
Integrated Digital Control Cabinet
Dustproof and anti-interference electrical box, centralized wiring layout, clear fault code display, convenient for engineers to debug and troubleshoot.
Integrated Base with Standard Connection Flange
Integrated thickened steel base, shock absorption design, standard mounting flange, fast installation and positioning for thermal oil boilers.
Thermal oil heating production lines
Asphalt mixing plant heating system
Industrial hot air drying furnaces
Chemical, rubber & plastic constant temperature processing
Textile printing and dyeing heating equipment
Food processing, pharmaceutical drying kilns
Building materials, metallurgy industrial furnaces
60+ Years Professional Thermal Combustion Manufacturer
EBICO founded in 1965, owns independent fuel combustion laboratory, every burner passes full load performance test before delivery, stable quality for global industrial clients.
Full-Size Model Coverage & Custom Solution
Complete power range from small to large industrial boilers, our engineering team provides one-stop matching solution according to your boiler tonnage, fuel type and workshop layout.
Global After-Sales Support System
Multi-language operation manual, remote online technical debugging, overseas engineer door-to-door service, 18-month warranty for core components.
Complete Import Compliance Certifications
Pass industrial safety, low emission, explosion-proof certification, meet import standards of Europe, Southeast Asia, Middle East, Africa and other regions.
A: Yes. EP-NQ model is specially optimized for heavy oil, built-in oil heating circulation system to reduce oil viscosity, guarantee smooth atomization and stable combustion.
A: Power range covers 300,000 to 30,000,000 kcal thermal oil furnaces, from small 0.5t/h to large industrial 140t/h boilers, we recommend matching model according to your actual furnace power.
A: No. Electronic proportional automatic adjustment, automatically match flame power according to furnace temperature load, no frequent manual operation needed.
A: All EP-Q/NQ models support non-standard customization, adjust oil pipeline direction, control box position and installation size based on your workshop space limitation.
