Product Introduction

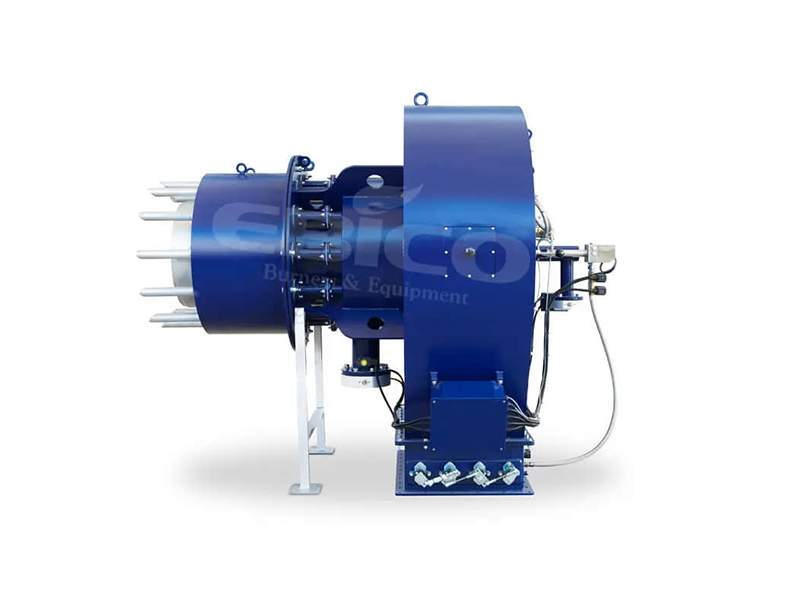

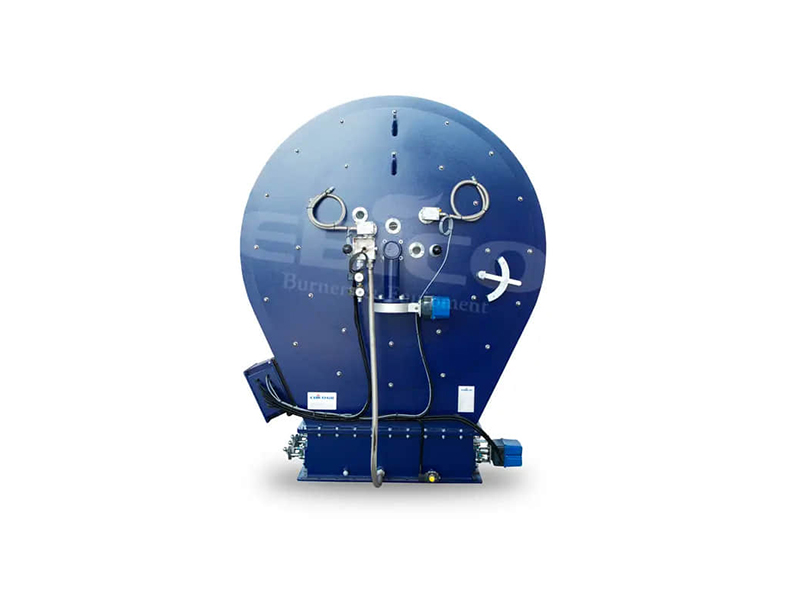

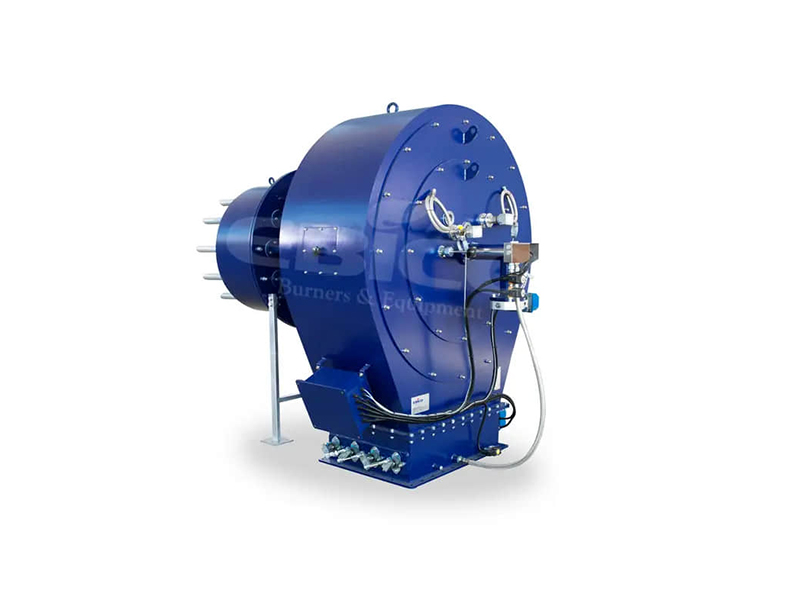

The EC-GNQR dual-fuel low-nitrogen burner is engineered for industrial boilers operating under complex fuel conditions and long-hour production cycles. It allows seamless switching between gas and liquid fuels while maintaining stable combustion performance. With an electronic proportional control system, the burner automatically adjusts air and fuel supply based on real-time load demand to ensure precise heat output.
Covering a wide power range from 390 to 86,000 kW, the EC-GNQR series matches boiler capacities from 6T to 120T. It is widely applied in industries requiring reliable steam, thermal oil heating, and strict emission control.
Working Principle
The EC-GNQR burner operates using an electronic proportional combustion control system. During operation, the controller continuously monitors boiler load and synchronizes the air supply with the selected fuel input.
Gas or oil enters the combustion chamber through independent fuel channels and mixes with precisely regulated airflow. Multi-stage flame stabilization structures ensure uniform heat release and stable ignition. This control logic enables high combustion efficiency while simultaneously suppressing NOx formation during the entire operating cycle.
Technical Parameters
| Model | Output capacity (KW) | Gas Consumption (Nm3/h) | Oil Consumption (kg/h) | Specifications of Boiler (T) |
| EC4GNQR | 3900 | 390 | 350 | 4 or 5 |
| EC5GNQR | 6400 | 640 | 575 | 6 or 8 |
| EC6GNQR | 9500 | 950 | 850 | 10 or 12 |
| EC7GNQR | 12500 | 1250 | 1120 | 15 |
| EC8GNQR | 16500 | 1650 | 1480 | 20 |
| EC9GNQR | 20000 | 2000 | 1800 | 25 |
| EC10GNQR | 24500 | 2450 | 2200 | 30 |
| EC11GNQR | 29500 | 2950 | 2650 | 35 |
| EC12GNQR | 33500 | 3350 | 3000 | 40 |
| EC13GNQR | 39000 | 3900 | 3500 | 45 |
| EC14GNQR | 44650 | 4465 | 4000 | 50 |
| EC15GNQR | 50200 | 5020 | 4500 | 65 |
| EC16GNQR | 55800 | 5580 | 5000 | 70 or 75 |
| EC17GNQR | 67500 | 6750 | 6060 | 80 |
| EC18GNQR | 72600 | 7260 | 6520 | 90 |
| EC19GNQR | 79000 | 7900 | 7075 | 100 |
| EC20GNQR | 86000 | 8600 | 7720 | 120 |
Applicable Fuels
The EC-GNQR burner is compatible with a wide range of gaseous and liquid fuels:
Natural Gas
Light Diesel Oil
Heavy Oil
Natural Gas + Light Oil Dual-Fuel
Natural Gas + Heavy Oil Dual-Fuel
Blast Furnace Gas
Producer Gas
Coke Oven Gas
Mixed Industrial Gases
Multi-fuel Hybrid Combustion Systems
This ensures reliable operation under different regional energy supply conditions.
Our Service & Support
Professional Model Selection Assistance
Technical engineers provide accurate burner selection based on boiler size, fuel type, and emission standards.
Customized System Design
Power range, control mode, and flame structure can be tailored to specific project requirements.
Original Spare Parts Supply
All core components are supplied directly from the original factory to ensure perfect compatibility.
Remote Technical Support
Online troubleshooting and operation guidance are available worldwide.
On-site Commissioning (Optional)
Field assistance for system startup and project delivery is available upon request.
12-month full product warranty
24-hour online technical response
365-day continuous service availability
International engineering project support experience
Long-term commitment to reliability, safety, and after-sales continuity
