Product Introduction
The Liquid Fuel Delivery System is an engineered solution designed to manage, condition and deliver liquid fuels—including light oil and heavy oil—to combustion equipment with high precision and reliability.
Compared with gaseous fuels, liquid fuels present unique challenges such as inconsistent viscosity, temperature sensitivity, contamination, and vapor accumulation. This system addresses all of these requirements through an integrated platform capable of continuous monitoring, automated adjustment and stable output.
Serving as the fuel preparation and delivery backbone of various industrial heating systems, it ensures that the burner receives fuel at the correct temperature, flow rate, cleanliness, and pressure, enabling combustion stability under demanding operating conditions.
Primary application scenarios include:
Industrial heavy-oil and light-oil burners
Thermal oil heating units
Medium- and high-capacity boilers
Asphalt mixing stations
Process furnaces and industrial kilns
The system is suitable for facilities requiring long-duration operation, tight fuel-control tolerances, and high thermal efficiency.
System Structure

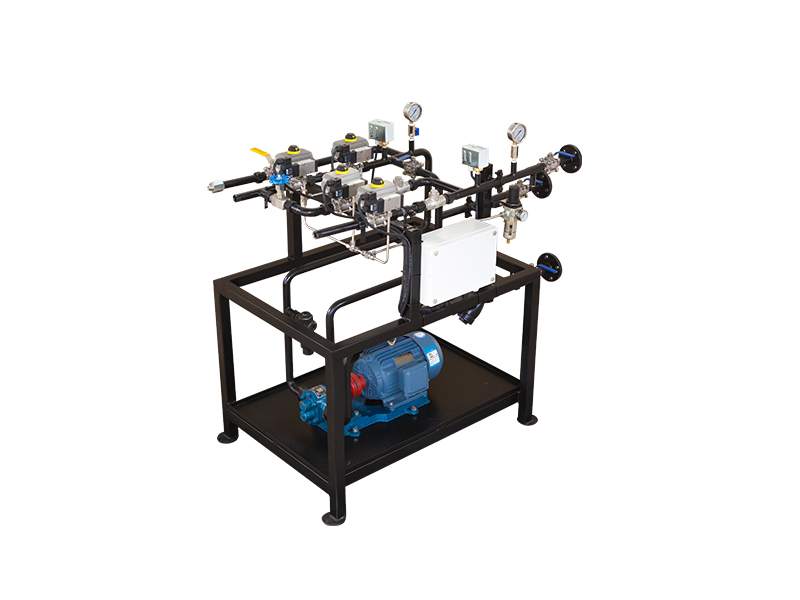

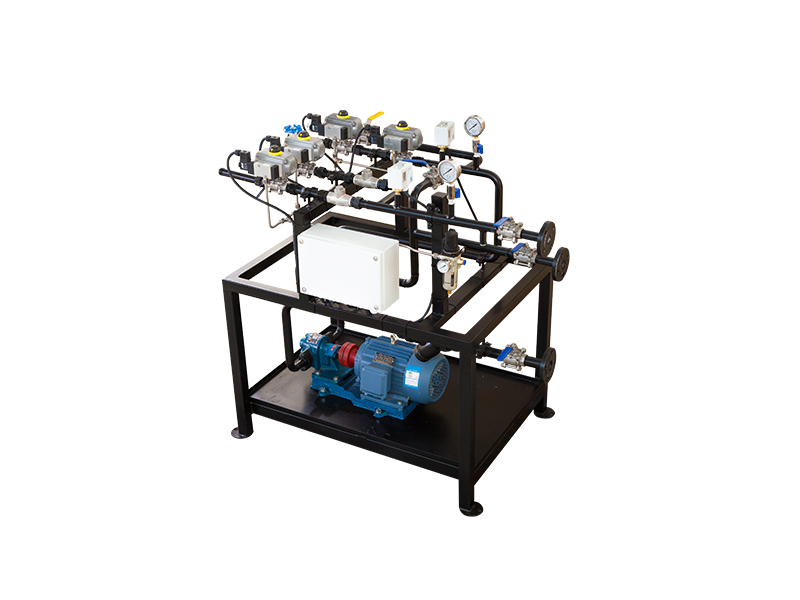

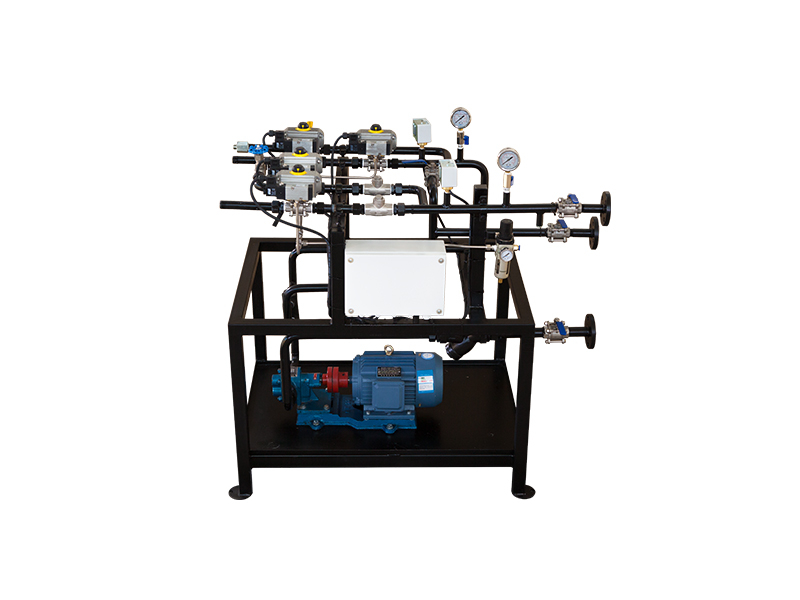

The Liquid Fuel Delivery System is built around a combination of automated mechanisms, thermal-conditioning modules, filtration components and dual-channel circulation loops, creating a robust architecture that supports efficient fuel handling from start to finish.
Two independent liquid-fuel circuits enable alternating or parallel operation. This structure enhances system availability by allowing one circuit to remain operational while the other undergoes inspection, cleaning or repair—ideal for production lines that cannot afford downtime.
The system executes fuel filtration, pressure stabilization, temperature regulation, and safety supervision autonomously. Sensors continuously capture operational data, while built-in logic adjusts pump output and thermal settings to match real-time requirements.
Each subsystem—pumping, heating, filtering or degassing—is assembled as an individual module.
This results in shorter installation timelines, easier expansion, and simplified module-level servicing. Isolation valves allow selective shutdown of modules without affecting the entire fuel supply.
Designed for low-viscosity fuels that require smooth, uninterrupted flow, this subsystem includes:
Self-cleaning filtration unit ensuring debris-free fuel
Pressure-regulated pumping module delivering stable force to the fuel line
Pressure indication and monitoring instruments for quick operational assessment
The design minimizes pulsation, prevents cavitation and ensures reliable atomization at the burner.
Heavy oil requires extensive preprocessing. This subsystem incorporates:
Automatic self-cleaning filtration valve to prevent clogging
Electrically driven pump with pressure control for consistent flow
Reinforced drive housing for high-temperature or high-viscosity environments
Integrated safety and monitoring suite, including a pressure gauge, switchable indicator instruments and a thermometer
Dual-limit thermostats for thermal safety
Degassing and preheating chamber to remove entrapped gases and reduce viscosity for optimal flow characteristics
This configuration guarantees proper fuel atomization, prevents vapor lock, and maintains stable supply even during temperature fluctuations.
Technical Performance
The system supports digital communication protocols, enabling supervisory platforms to read operational values, adjust setpoints and issue commands remotely. Updates in fuel temperature, pump status and pressure feedback can be transmitted to plant control rooms in real time.
The dual-loop design ensures continuous delivery of fuel during routine servicing. Should a sensor indicate abnormal behavior, the system automatically isolates the affected branch while maintaining normal operation in the other circuit.
Fuel characteristics vary significantly between industries and regions. The system’s adaptable design allows engineers to tailor heating capacity, filtration grade, pump output and monitoring intensity according to the project’s process requirements.
The entire process is tightly controlled to maintain fuel consistency:
Fuel intake from storage
Primary and fine filtration to remove mechanical impurities
Pressure stabilization to ensure correct downstream supply
Degassing to prevent vapor-related instability
Preheating and temperature conditioning for improved viscosity and combustion quality
Controlled delivery to the burner under stable pressure and temperature
Continuous monitoring to maintain safe and predictable operation
The result is a combustion-ready fuel stream that supports both efficient heat generation and long-term equipment protection.
Design Style: Monoblock burner configuration
System Category: Standard burner fuel delivery system
Supported Fuels: Light oil and heavy oil
(Additional engineering specifications can be appended based on project scope.)
Improved ignition performance with heavy fuels
Stable thermal behavior due to precise temperature conditioning
Lower operating risk through continuous dual-loop redundancy
Easier onsite maintenance with modular assemblies
Strong resilience to demanding industrial operating environments
Reduced lifetime operational cost through efficient automation
Custom
Every combustion project comes with unique technical conditions. We provide a project-oriented engineering support framework that transforms on-site requirements into a fully matched fuel delivery solution.
Our engineering service covers the complete workflow:
Operating condition evaluation
Analysis of fuel type, viscosity level, ambient temperature, capacity demand, pressure range, and continuous operation duration.
System selection & functional matching
Determination of appropriate filtration grade, pump power, heating capacity, and redundancy strategy.
Pipeline & thermal routing design
Optimization of oil piping layout, insulation, preheating zones, and degassing locations.
Control system integration
Signal coordination with PLC, DCS or centralized control platforms, ensuring stable communication and reliable automation.
Project-level manufacturing & commissioning
Customized production, factory testing, on-site commissioning guidance, and long-term operational support.
This engineering-driven approach ensures that each system is not simply delivered as equipment, but as a ready-to-run fuel management solution.
To adapt to different fuel properties and process demands, the Liquid Fuel Delivery System supports extensive structural and functional customization:
Flow Path Design
Single-channel configuration
Dual-channel continuous-operation configuration
Online switching architecture
Fuel-Specific Design
Light-oil dedicated systems for low-viscosity fuels
High-temperature heavy-oil systems with preheating and degassing
Thermal & Safety Options
Adjustable preheating temperature levels
Multi-stage temperature control
High-precision thermostatic protection
Structural & Protection Options
Explosion-proof assemblies for hazardous zones
Reinforced structural housings for severe industrial environments
Automation & Signal Interfaces
Custom control signal types
Remote monitoring compatibility
Data communication interface matching
Through this flexible configuration platform, each system can be precisely adapted to the actual fuel behavior, burner characteristics and site operation strategy.
